CONNECTORS & RECEPTACLES
FAX: 773 792-2129 E SERIES Q-G ? RECEPTACLES
* Please visit the product pages on our website for the most up-to-date product information

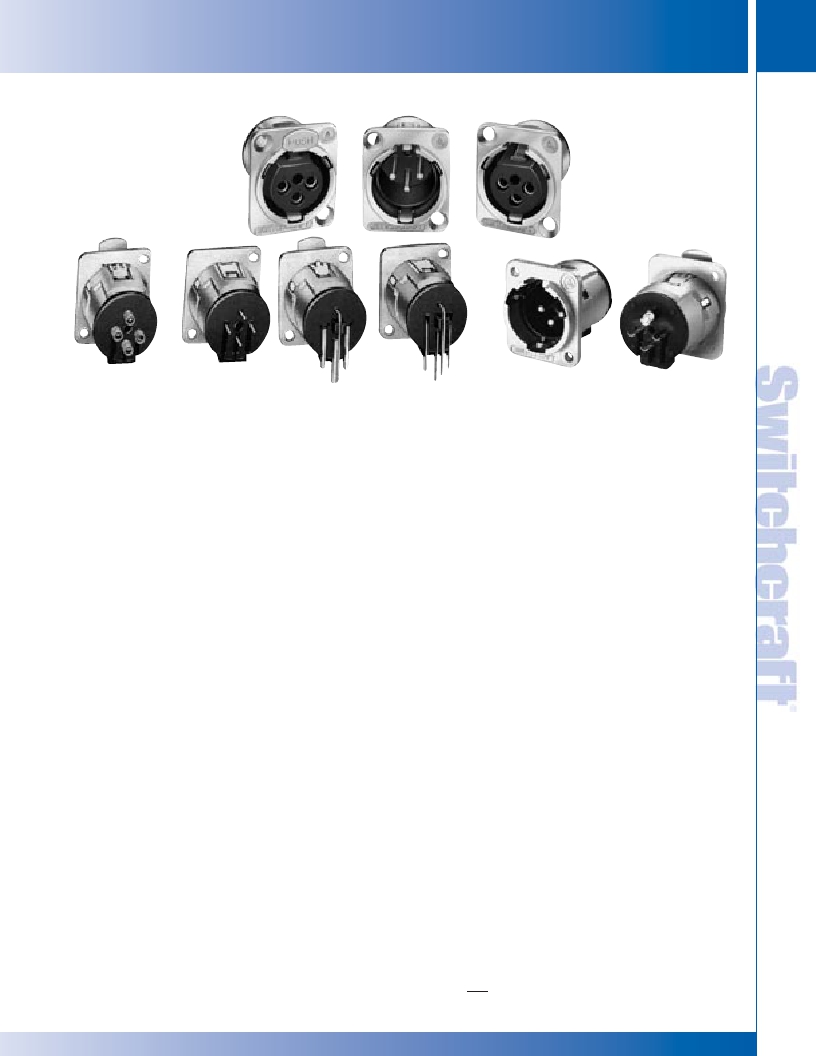

E SERIES RECEPTACLES
E Series
Receptacles
11
Conical Spring
Solder Terminals
Straight PC
Terminals
Right Angle
PC Terminals
Solder cup
E Series Q-G ? Receptacles are available with quick release
inserts. Quick insert release is accomplished by turning
screw lock from front of insert. Insert can then be removed
from the rear. For PC board applications, insert can be
removed/assembled to the housing while soldered to
the PC board.
FEATURES
E Series receptacles can be specified as complete assemblies,
or as separate inserts and housings. Stocking separate
inserts and housings offer considerable cost and time sav-
ings by minimizing inventory and maximizing configuration
possibilities.
3. Right-angle PC terminals - direct termination to PC
?
?
?
?
Replaces Neutrik D Series
3-pin contact; male and female types
Both male and female fit in same panel cutout
Choice of 4 terminations; solder cups, conical springs,
straight or right angle PC terminals.
board at a right-angle. Housing mounts to panel.
4. SC - Solder cup
SPECIFICATIONS
ELECTRICAL
? Inserts and housings can be specified separately
? Quick release inserts for ease of removal
? Locking receptacles
? Protected ground clip minimizes scooping damage
? Insert lock detent resists disassembly from shock or
vibration during normal handling and transportation
? Silver and gold-plated contacts available
? Rugged metal shells; black or satin nickel finishes
? Through-the-shell ground connection and all-metal
shells for greater shielding effectiveness
? Compatible with Switchcraft Q-G ? , QGP and other
connectors with similar configurations
QUICK RELEASE INSERT
In two simple steps, inserts can be released while
housing stays fastened to the panel.
1. With a small screwdriver, twist insert locking screw
from front of insert.
2. Remove insert from the rear of the housing.
TERMINALS
Four terminations are available on E Series receptacles:
1. Conical Spring Solder terminals – conical spring on
each pin holds wire in place providing constant pressure
during soldering process. This effectively acts as a third
hand, assuring a high quality solder termination.
Housing mounts to panel.
2. Straight PC terminals – direct termination to PC
board. Housing mounts to panel.
Contact Resistance: 50 milliohms maximum, per pole.
Current Rating: 15A
Insulation Resistance: 2 X 10 6 M ?
Dielectric Resistance: 1,000 V rms
Capacitance: 10 pF
MECHANICAL
Insertion/Withdrawal Forces: 7 pounds maximum /
5 pounds nominal insertion; 7 pounds maximum /
5 pounds nominal withdrawal.
Life: 10,000 operations (minimum).
ENVIRONMENTAL
Thermal Range: -55° C to +85° C
Humidity: Meets MIL-STD-202F, method 106E.
Thermal Shock: Meets MIL-STD-202F, method 107D.
Salt Spray: Meets MIL-STD-202F, method 101D.
MATERIAL
Shells: Die-cast; satin-nickel or Black Velvet.
Inserts: Glass-filled thermoplastic.
Socket Contacts: Copper alloy, silver- or gold-plated.
Pin Contacts: Copper alloy, silver- or gold-plated.
Latch Release: Steel, nickel-plated.
Insert Locking Cam: Die-cast zinc.
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
